MID-CLASS LEADING POWER
Achieving 48hp industry leading power in this class with Benda independent R&D V-twin engine.
Make your ride smooth and unaware of vibration.
The application of Intelligent Electronic Throttle makes much more precise control, faster reaction and economic.
Sensible great torque in low speed, for working or for fun, it is your trustable buddy.
Low tension piston ring design make much less friction and lower fuel consumption.
A man with strong heart will never let you down.
HIGH STRENGTH AND LIGHTWEIGHT “BODY”
Large-scale application of high strength chromium-molybdenum steel and forged aluminum resulting in 20% more load-bearing capacity.
Better rigidity and lighter weight, which effectively improves the safety and handling performance of the machine.
ADJUSTABLE EPS
The electric power steering system (EPS) adopts Tri-Mode (comfort/standard/sport), it intelligently provides steering assistance, which reduces driving fatigue and easily cope with all terrain scenarios.
Just switch the mode that you need and hit the road, make your day.
EFFECTIVE THERMAL MANAGEMENT
The air intake and guide cooling system provides ideal ventilation and air flow in the engine compartment, cool down the machine, the overall.
performance of the engine is further improved.
Drive it cool with your super cool Benda Redstone.

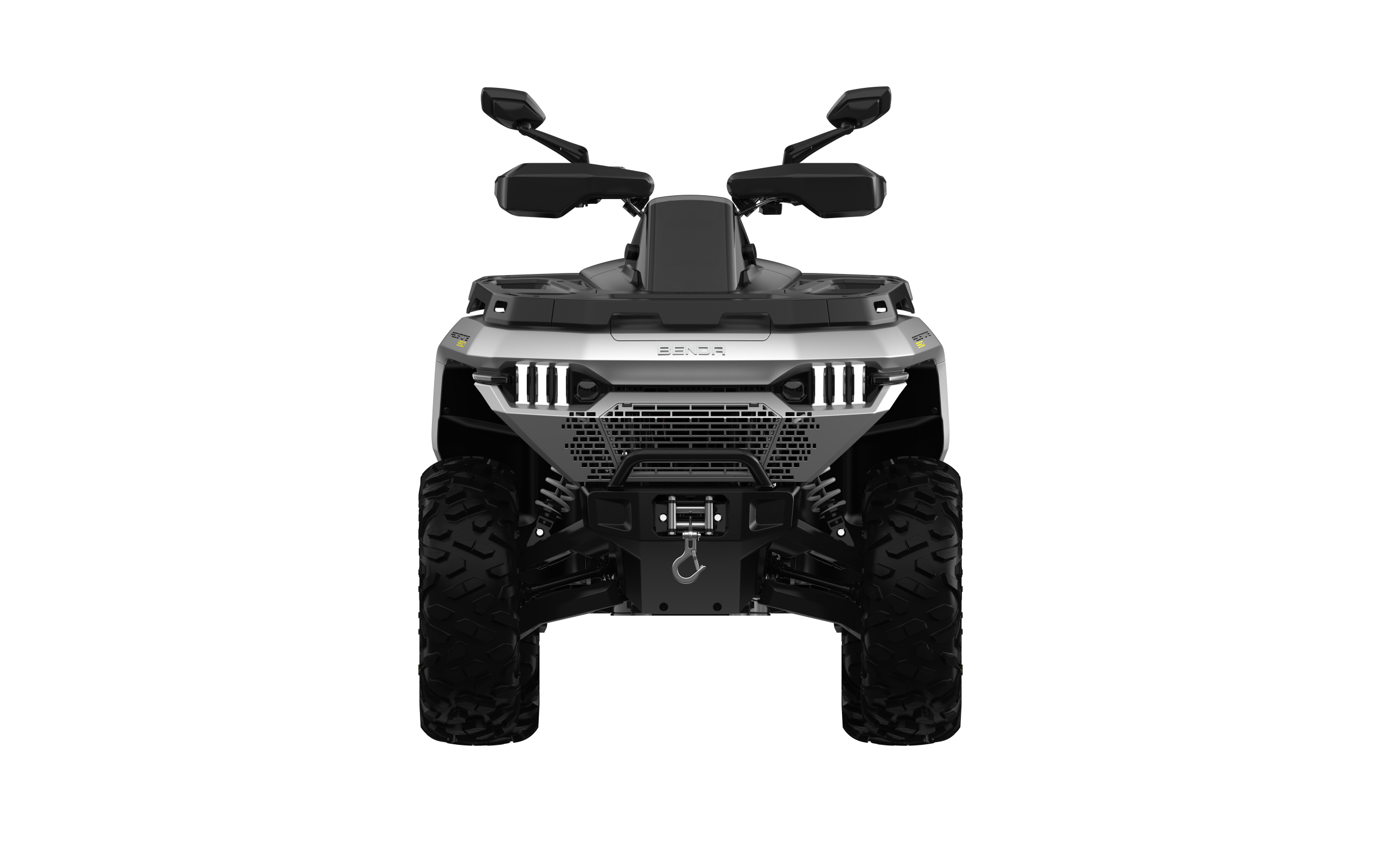

AVANT-GARDE LIGHTS
Automobile level Avant-garde matrix LED lights, not just looking awesome, but also illuminating your road ahead.

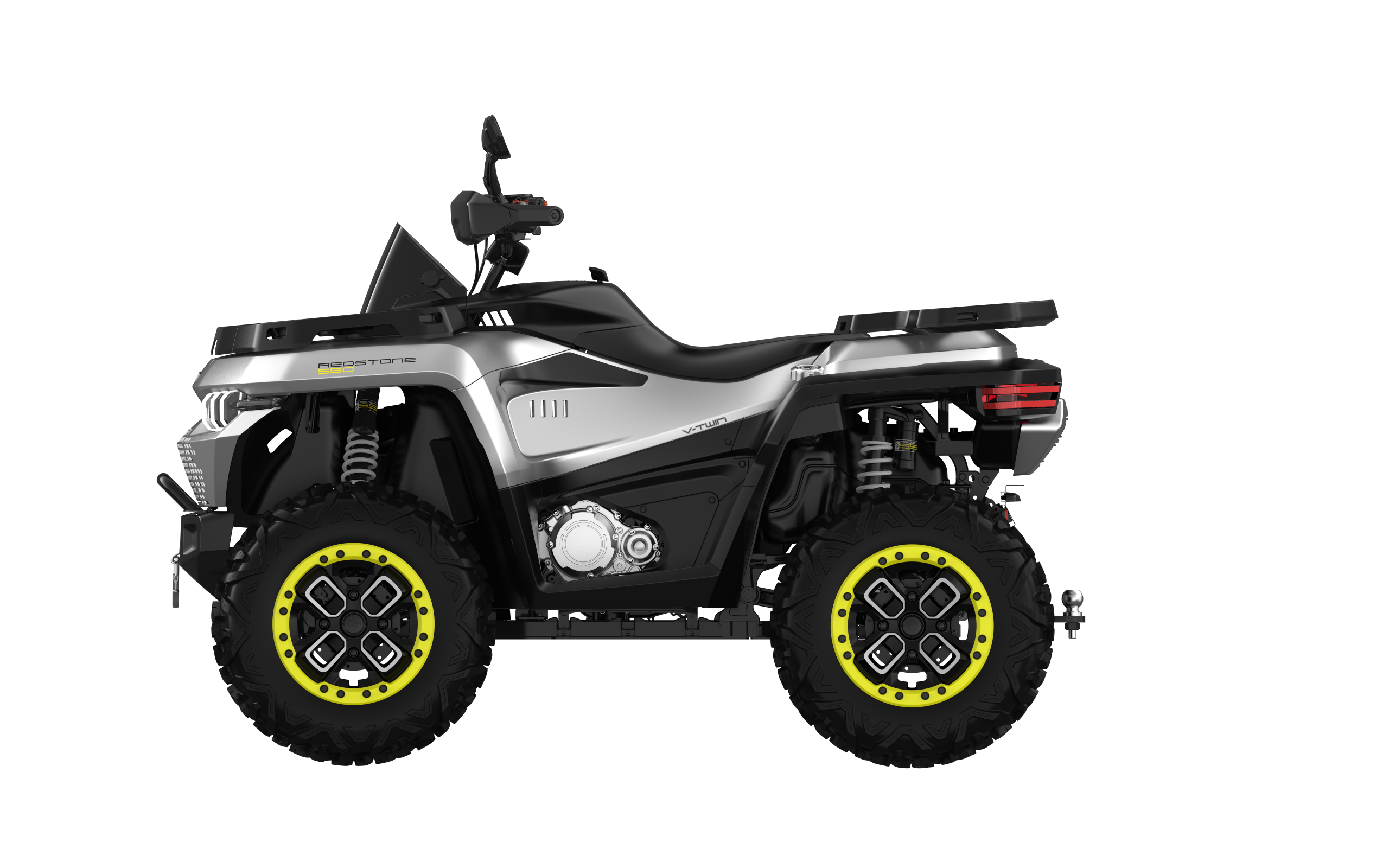

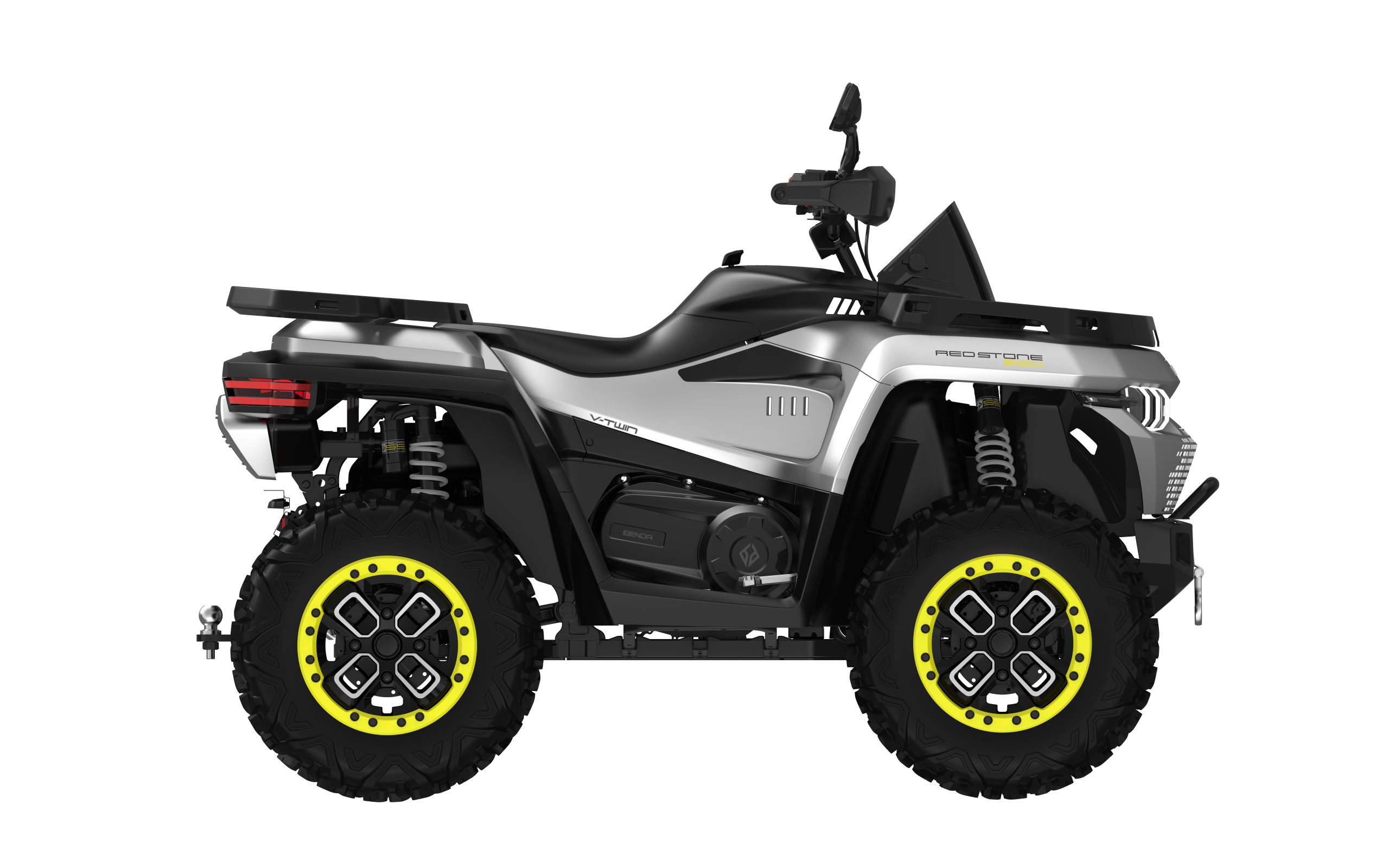

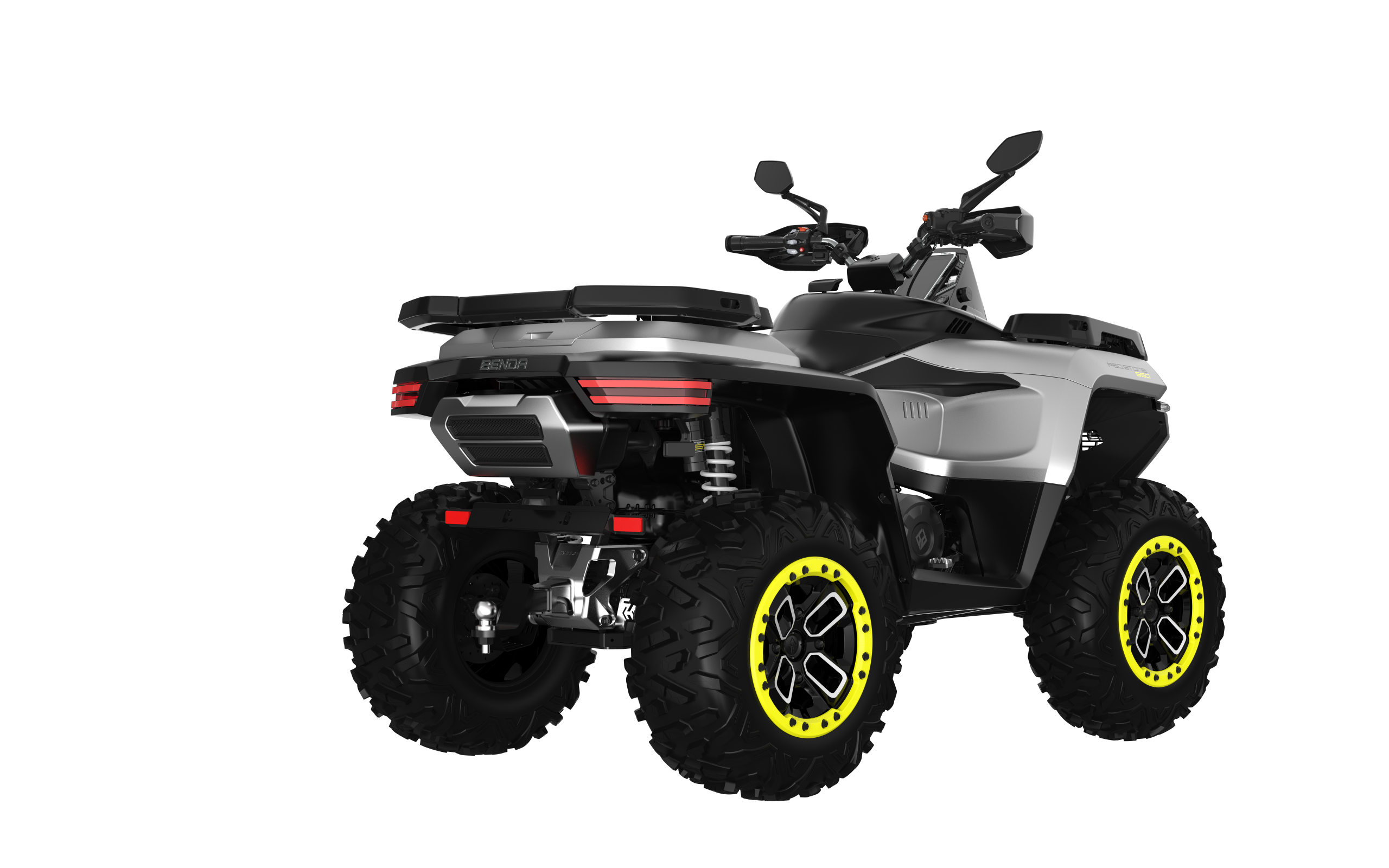

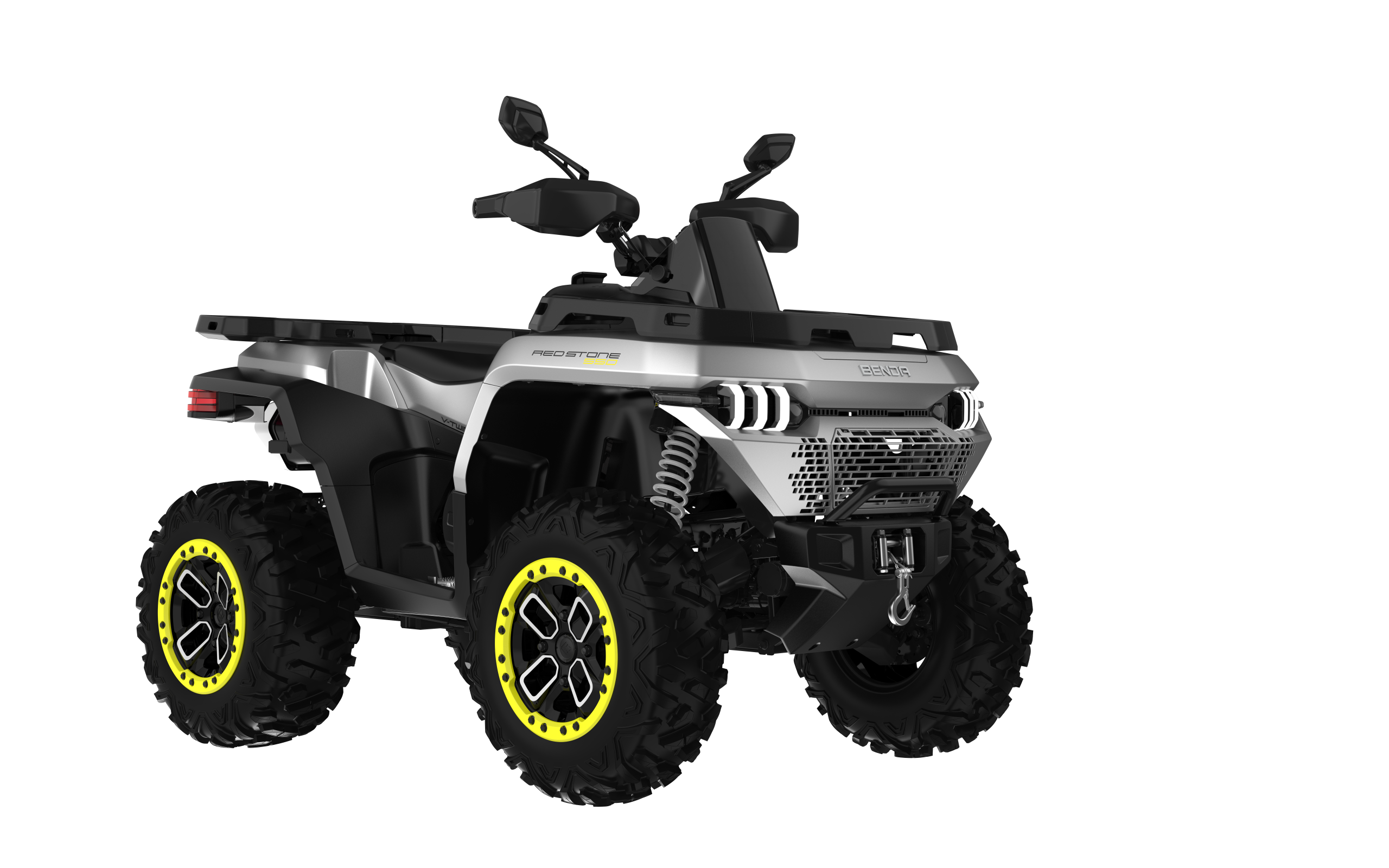

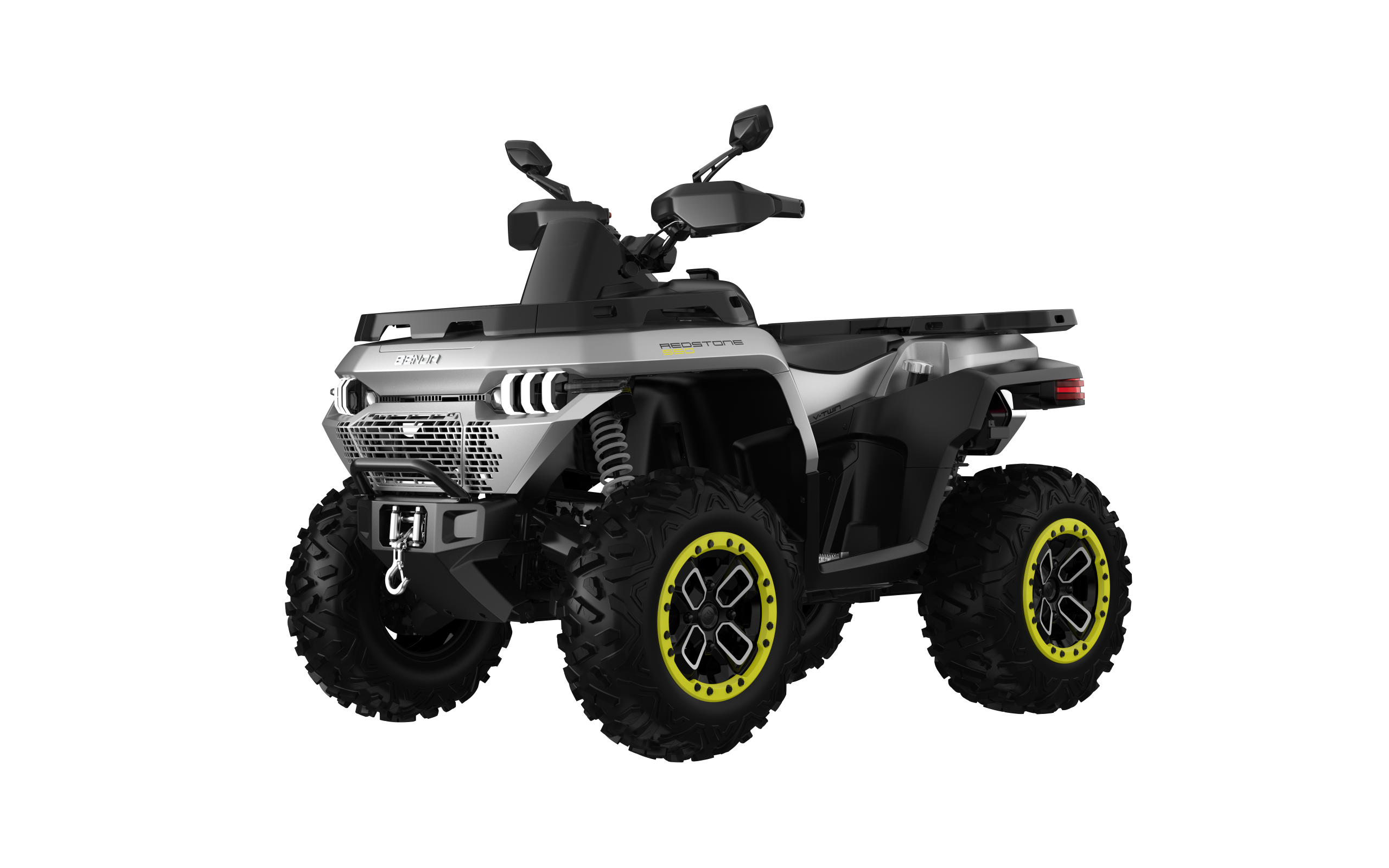

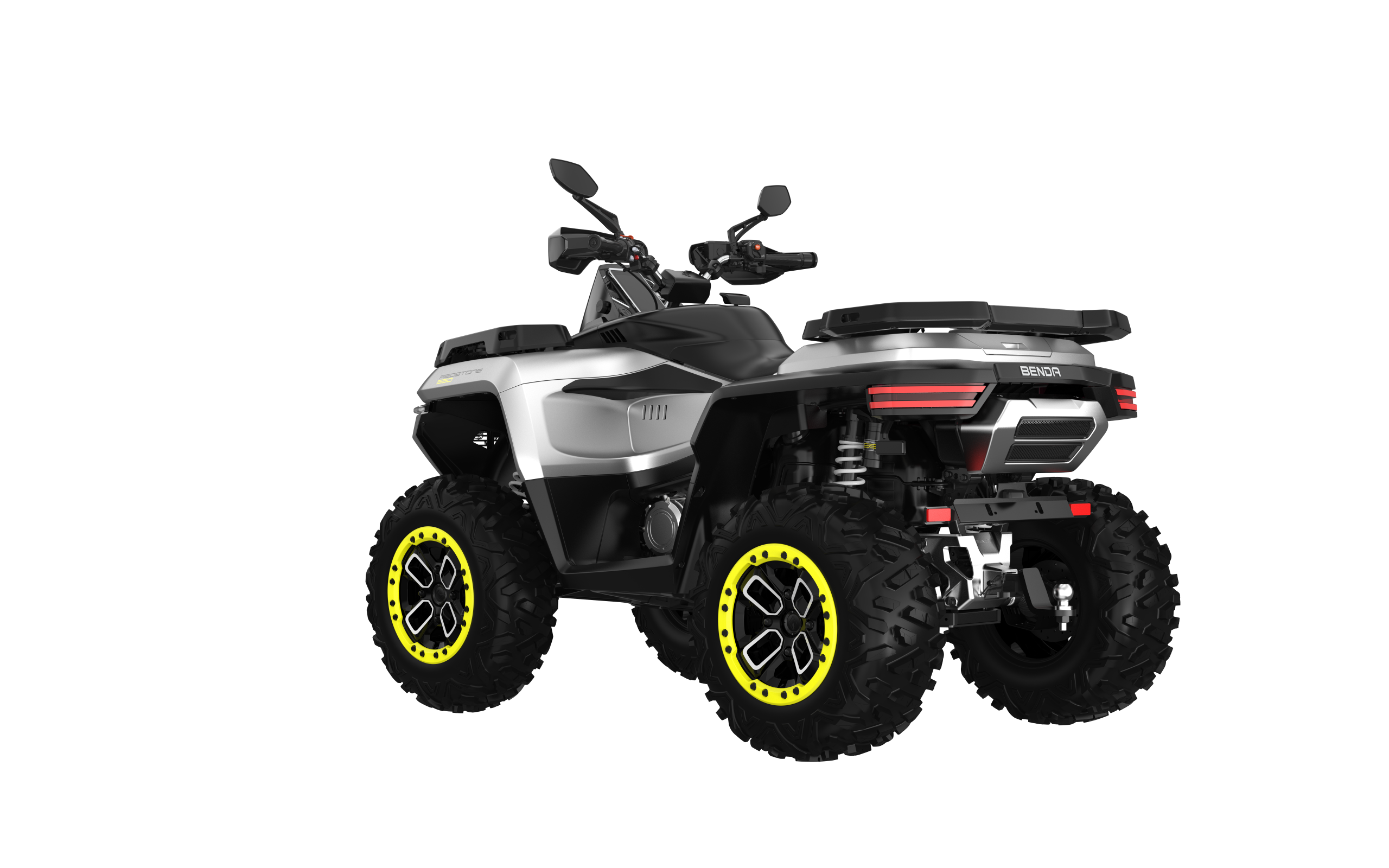

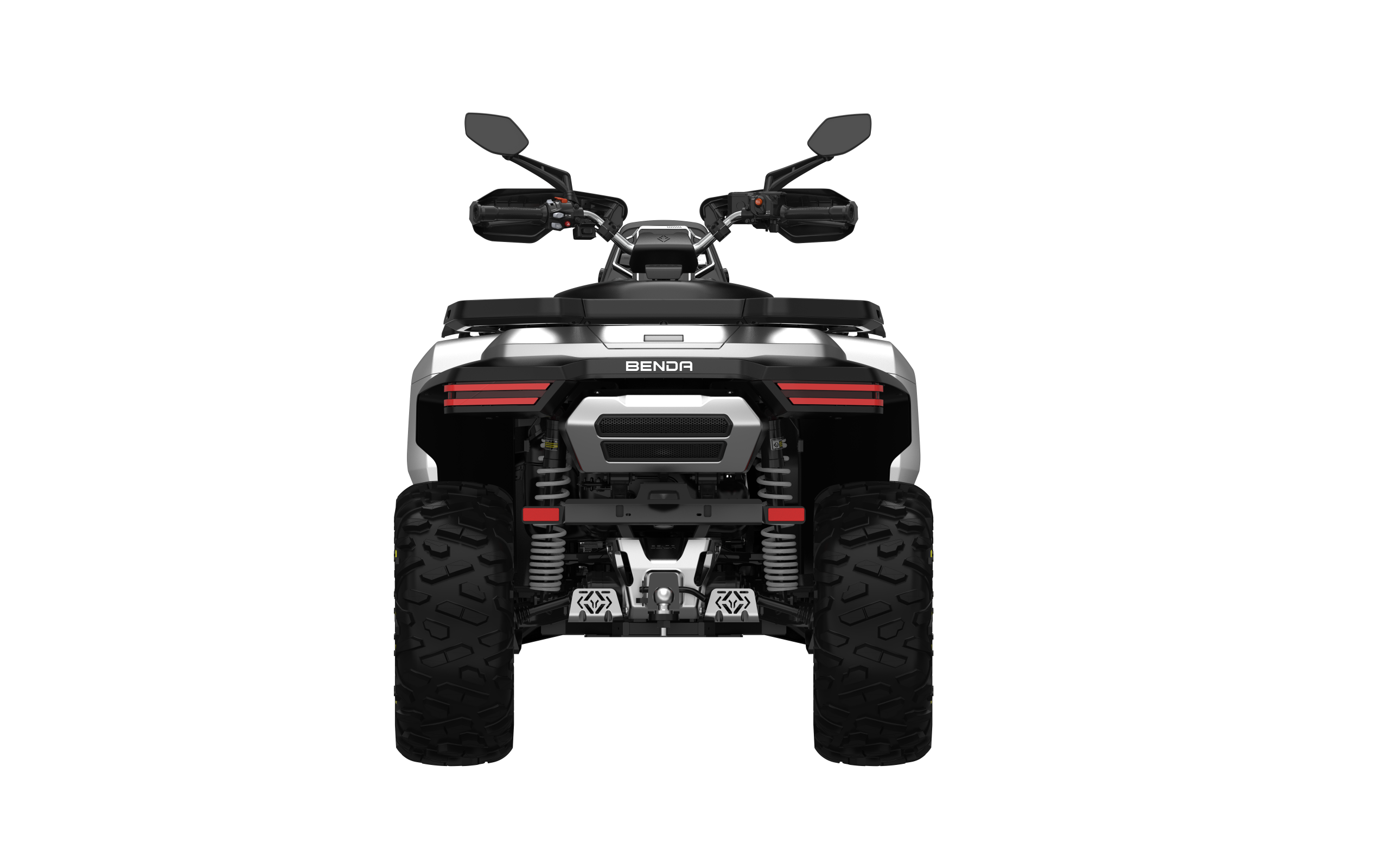

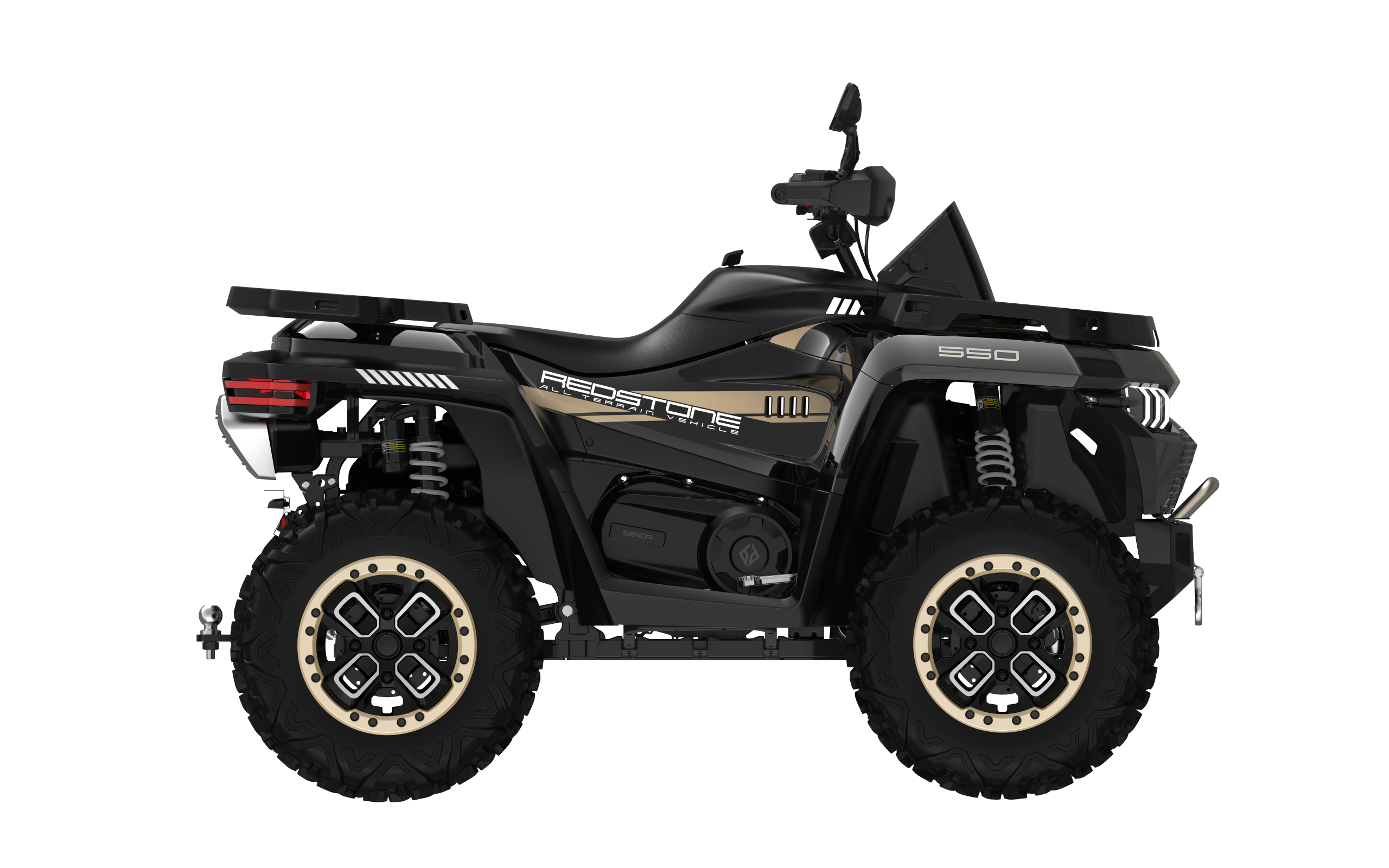

REDSTONE 500
MOTOR & ANTRIEBSSTRANG | |||
Motortyp | 4-Takt SOHc V-Twin Zylinder | ||
Leistung /Hubraum | 48 PS / 500 cm³ | ||
Kraftstoffsystem/Kuhlung | EFl / Flüssigkeit | ||
Ubertragung | CVT-Getriebe L / H / N / R / P | ||
Antriebsstrang | Wahlbarer 2WD/4WD mit Differenzialsperre | ||
Federungen | |||
Vorderradaufhangung | Doppelter Dreieckslenker mit Stabilisator, Federweg 230 mm | ||
StoBdampfer vorn | Einstellbarer GasstoBdampfer | ||
Hinterradaufhangung | Unabhängiger Drehlenker, Federweg 250 mm | ||
Hintere StoBdampfer | Einstellbarer GasstoBdampfer | ||
Vorderreifen | |||
Vorderreifen | 25 × 8 × 12 in & 26 × 9 × 14 in | ||
Hinterreifen | 25 × 10 × 12 in & 26 × 11 x 14 in | ||
Rader | 12 Zoll Aluminium und 14 Zoll Aluminium | ||
Bremsen | Doppelte 220-mm-Scheibenbremsen | ||
ABMESSUNGEN / KAPAZITÄTEN | |||
L x B x H | 2150 x1250 x1300 mm | ||
Radstand | 1300 mm | ||
Bodenfreiheit | 305 mm | ||
Geschatztes Trockengewicht | 387 kg | ||
Anhangelast | 697 kg | ||
Kraftstofftankkapazität | 30 Liter | ||
sitzhohe | 95 cm | ||
